PRODUCT INFORMATION:

• Manufacturer: miHoYo



• Dimensions:

• 108-key:440 x 136.60 x 43.66mm

• 87-key: 363.8 x 136.6 x 43.66mm



• Buttons can only be replaced in their own classification (refer to photos)
• Keyswitch Socket: Kailh

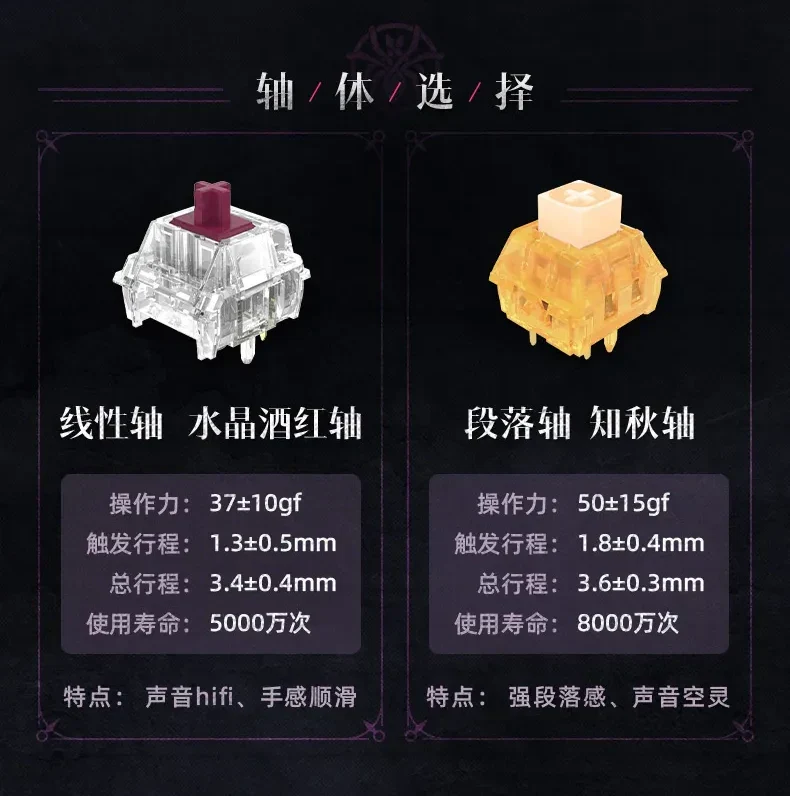

Crystal Burgundy Red Switch

• Type: linear
• Operating Force: 37±10gf
• Pre-travel Distance: 1.3±0.5mm
• Total Travel Distance: 3.4±0.4mm
• Lifespan: 50M keystrokes
• Characteristic: “hifi” sound, smooth feel

Autumn Brown Switch

• Type: tactile
• Operating Force: 50±150gf
• Pre-travel Distance: 1.8±0.4mm
• Total Travel Distance: 3.6±0.3mm
• Lifespan: 80M keystrokes
• Characteristic: distinct tactile feedback, ethereal/natural sound

Note

• Please do not use alcohol to rub the UV-printed casing.
• Mechanical keyboards are not waterproof or dustproof.
• Key caps can be cleaned with detergent after taken off from the keyboard. Make sure they are all totally dry before installing them back in the keyboard.
• Use brush to remove dust from the keyboard.
• Do not expose it to strong sunlight and high heat for long term.
